Characteristics
|
| LMG |
 |
| XYZ |
Model variations
| 1340 VMC(3AX) 1 Milling Spindle |
|
| Category | Item | Specification |
| Travels | Stroke X[mm] | 1500 |
| Stroke Y[mm] | 660 |
| Stroke Z[mm] | 660 |
| Rapid traverse(X)[m/min] | 40 |
| Rapid traverse(Y)[m/min] | 40 |
| Rapid traverse(Z)[m/min] | 32 |
| Table | Workpiece allowable Load[kg] | 1500 |
| Table Size[mm] | 1530×660 |
| Category | CNC brand | OSP |
| CNC system | OSP-P300M
|
| Origin | Japan |
Milling spindle 1(H1)
| Spindle name | | | H1-3 | H1-4 | | | | Taper | | | 7:24 taper No. 40 | 7:24 taper No. 50 | | | | Rotational speed[rpm] | | | 15000 | 12000 | | | | Power[kW] | | | | 18.5(Cont)!26(10min) | | | | Torque[Nm] | | | 199 | 199 | | | | Transmission | | | | | | | |
Tool Magazine 1
| Tool holder taper | 7:24 taper No. 40
| 7:24 taper No. 50
| | | | | | No. of tool storage[ea] | 32
| 32
| | | | | | Tool diameter[mm] | | | | | | | | Tool length[mm] | | 400
| | | | | | Tool weight[kg] | | 12
| | | | | | Tool change time(TTT)[s] | | | | | | | | Tool change time(CTC)[s] | | | | | | | |
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)
Guide way
| Axis | X | Y | Z |
| Guide way | LMG | LMG | LMG |
| Qty | 2 | 2 | 2 |

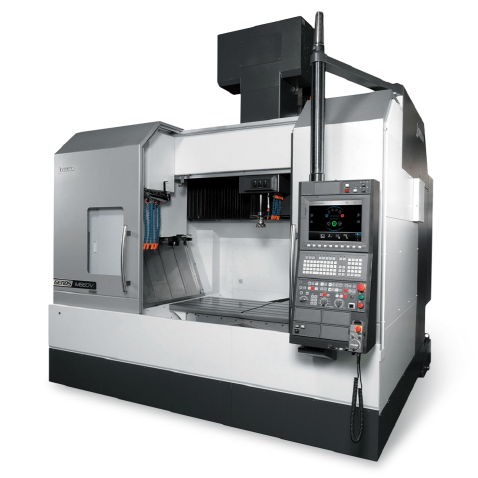

Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
